Shoreline Offroad Pro Series 50” RGBIC Lightbar

What's in the Box

• Pro Series 50 inch RGBIC Lightbar, one bar
• Stainless steel mounting brackets

Tools You Will Need

• Socket and wrench set for the bracket hardware
• Wire cutters, crimpers, and connectors for the three wires
• Electrical tape and zip ties for routing

Read This First

• Disconnect the battery before any wiring.
• If your rig runs an auxiliary switch panel, disconnect the panel at the switched fuse so every circuit stays dead while you work.
• The RGBIC strip needs its own switch. Plan two switch positions before you wire: one for the bright white light and one separate positive switch for the RGBIC strip. Do not tie the yellow wire to the white light switch.
• Confirm the bar's mounting line and the wire route to your switches before drilling or snugging anything down. At 49.2 inches actual, the bar needs its full span clear.

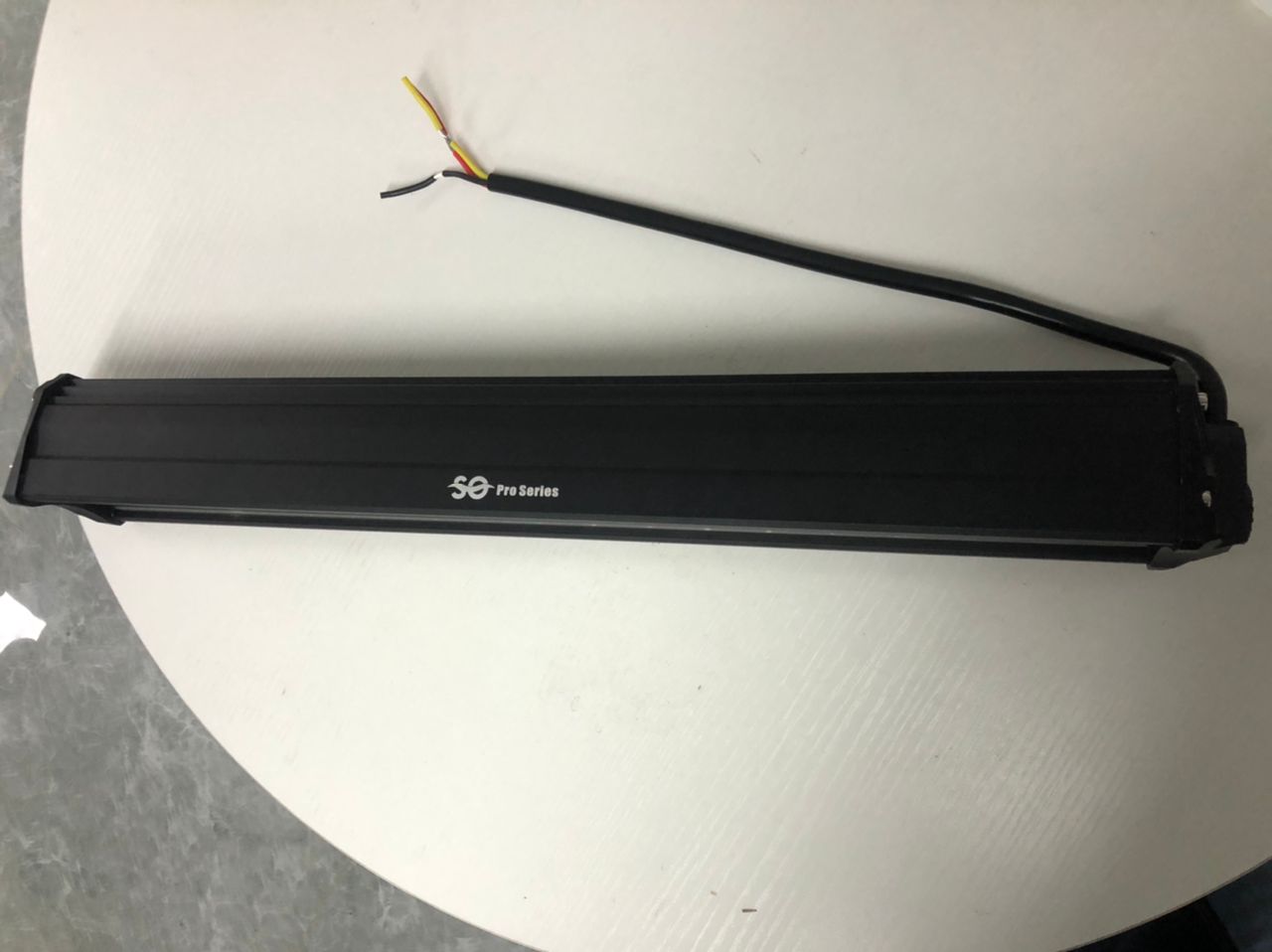

Mount the bar on its stainless steel brackets and snug the hardware in stages so the bar stays level across its full span, then aim it on level ground before final torque. Keep the three wires reachable at the end of the bar for the wiring card.

The bar runs on three wires:

• Red: Positive, bright white light
• Black: Negative, ground
• Yellow: RGBIC strip

1. Mount the bar per the placement card.
2. Connect the red wire to a fused positive switch for the bright white light.
3. Connect the black wire to negative ground, clean bare metal or the battery negative.
4. Connect the yellow wire to a separate positive switch, apart from the bright white light bar switch. This is the RGBIC strip's own circuit.
5. Route and secure every run clear of heat and sharp edges.
6. Reconnect the battery and test in order: white driving light on its switch, then the RGBIC strip on its own switch.

Two modes on two switches: a bright white driving light and an RGBIC position strip. There is no app on this bar; the strip is switch controlled, so the color behavior follows the strip's own switching, not a phone.

Specs

• Actual length: 49.2 inches
• Size: 61mm wide x 63mm high
• Power: 480W total (96 LEDs x 5W)
• Beam: Driving light plus position light
• Position light color: RGB
• Housing: Aluminum
• Bracket: Stainless steel
• Lens: PC
• Reflector: Straight reflector
• App: None. RGB strip is switch controlled
• Warranty: 2 years

• The white light is dark but the strip works: check the red wire's fuse and switch leg.
• The strip is dark but white works: check the yellow wire's fuse and its separate switch. Confirm the yellow wire is not tied to the white light switch.
• Both sides are dark: check the black ground first, then both fuses.
• The strip behaves oddly: confirm the yellow wire lands on a clean positive switch, not shared with another load.
