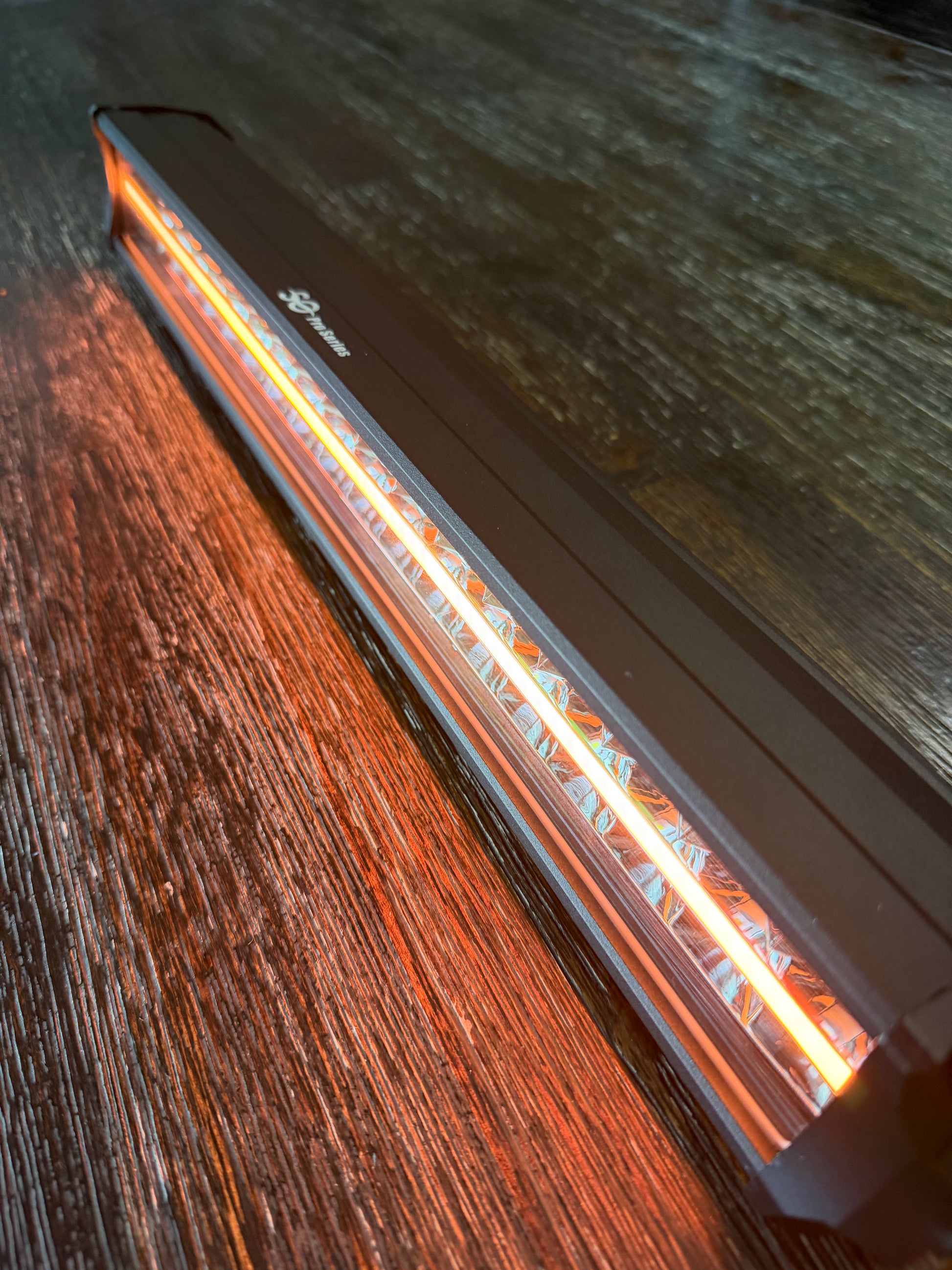

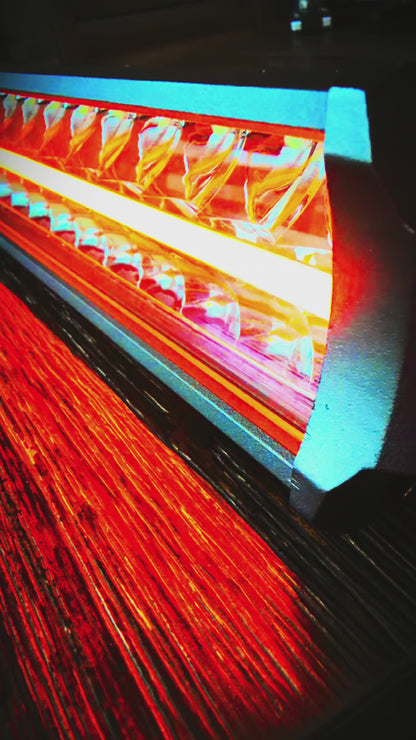

Shoreline Offroad Pro Series 20” RGBIC Lightbar

What's in the Box

• Pro Series 20 inch RGBIC Lightbar, one bar
• Stainless steel mounting brackets

Tools You Will Need

• Socket and wrench set for the bracket hardware
• Wire cutters, crimpers, and connectors for the three wires
• Electrical tape and zip ties for routing

Read This First

• Disconnect the battery before any wiring.
• If your rig runs an auxiliary switch panel, disconnect the panel at the switched fuse so every circuit stays dead while you work.
• The white side and the color side are separate circuits with separate wires. Plan two switch positions: one for the white driving light and one feeding the RGBIC strip.
• Confirm the bar's mounting line and the wire route to your switches before drilling or snugging anything down.

Mount the bar on its stainless steel brackets, which are built to hold it through rough rides. Snug the bracket hardware in stages so the bar stays level, then aim it on level ground before final torque. Keep the three wires reachable at the end of the bar for the wiring card.

The bar runs on three color-coded wires:

• Red: Positive, bright white driving light
• Yellow: RGB effects (RGBIC position strip)
• Black: Ground

1. Mount the bar per the placement card.
2. Connect the red wire to your vehicle's positive terminal through a fused switch, for the bright white driving light.
3. Connect the yellow wire to a fused switched source for the RGB effects, so the RGBIC strip has power when you want color.
4. Connect the black wire to ground, clean bare metal or the battery negative.
5. Route and secure every run clear of heat and sharp edges.
6. Reconnect the battery and test in order: white driving light, then the RGBIC effects from the app card.

What It Controls

The LotusLamp X app runs the RGBIC color side of your lightbar: pick your favorite colors or set up dynamic light patterns from your phone. The white driving light itself runs on your switch, not the app.

Pairing and Setup

1. Download the LotusLamp X app.
2. Turn Bluetooth on in your phone's settings.
3. Power the light on, open the app, and connect to the light.
4. Open Settings in the app, set the pixel point, and Confirm. That step is what maps the RGBIC effects correctly across the light.
5. Run a color pattern to confirm the effects chase the way the app shows them.

Specs

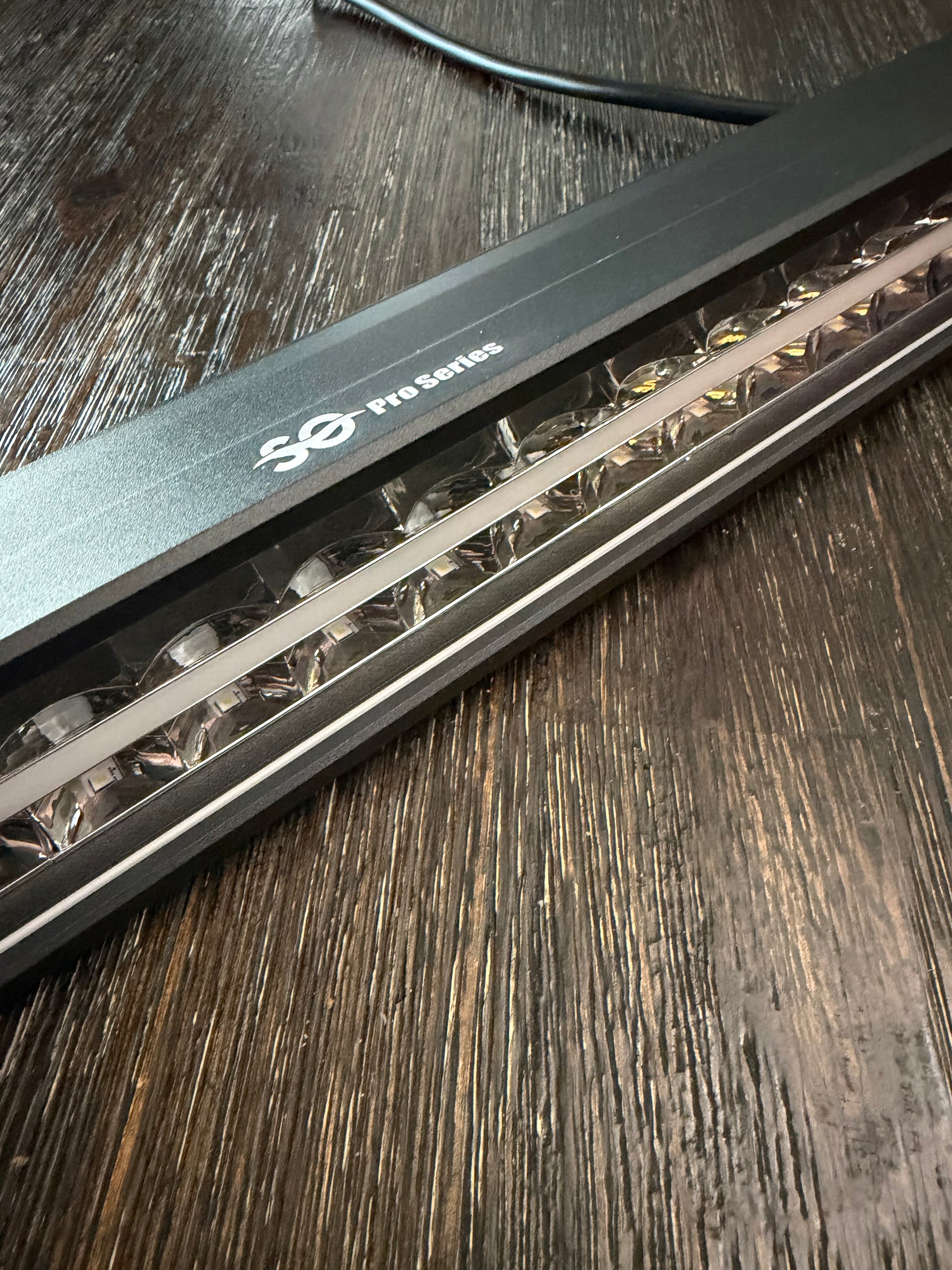

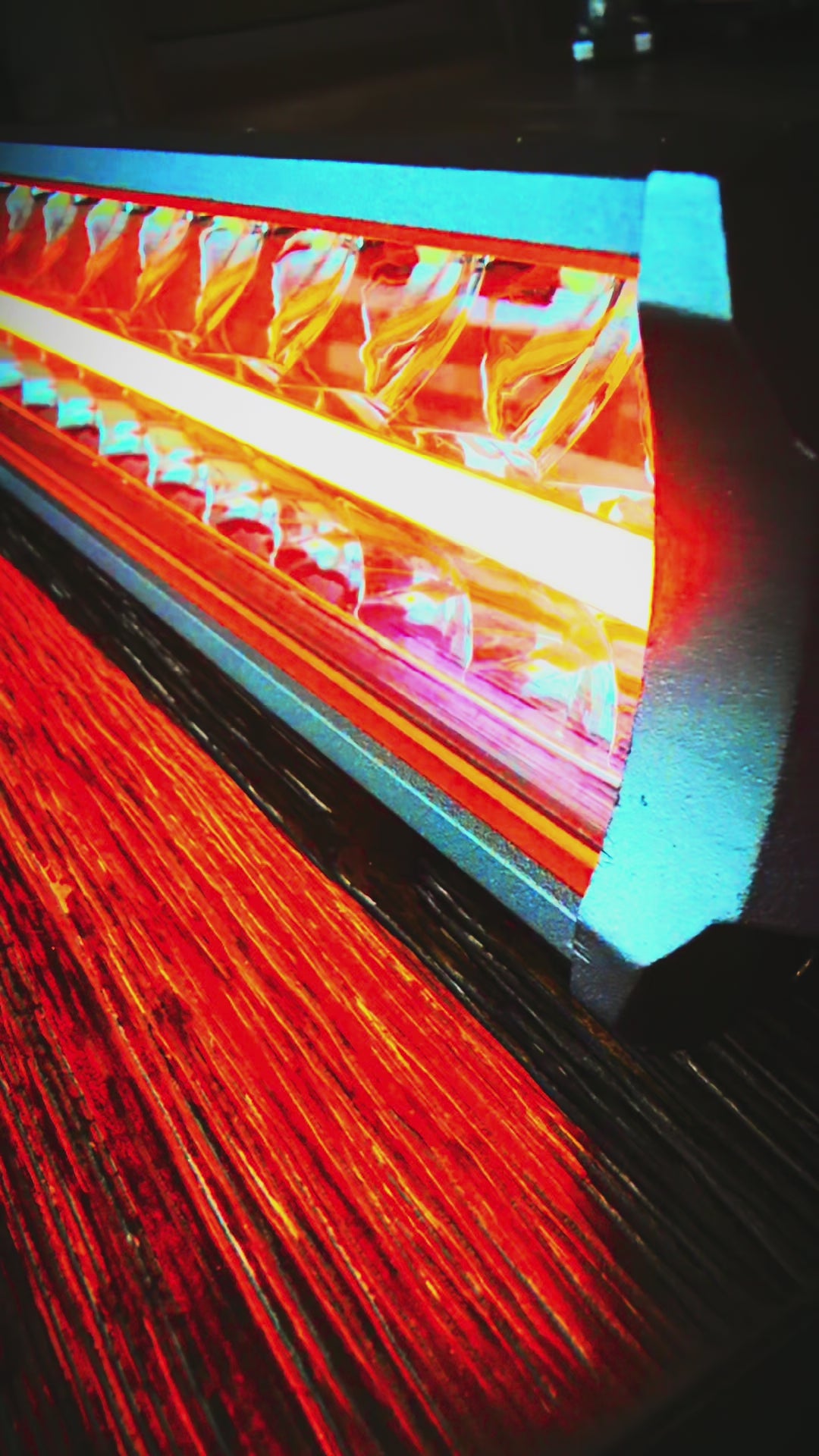

• Power: 180W from 36 high-performance 5W LEDs

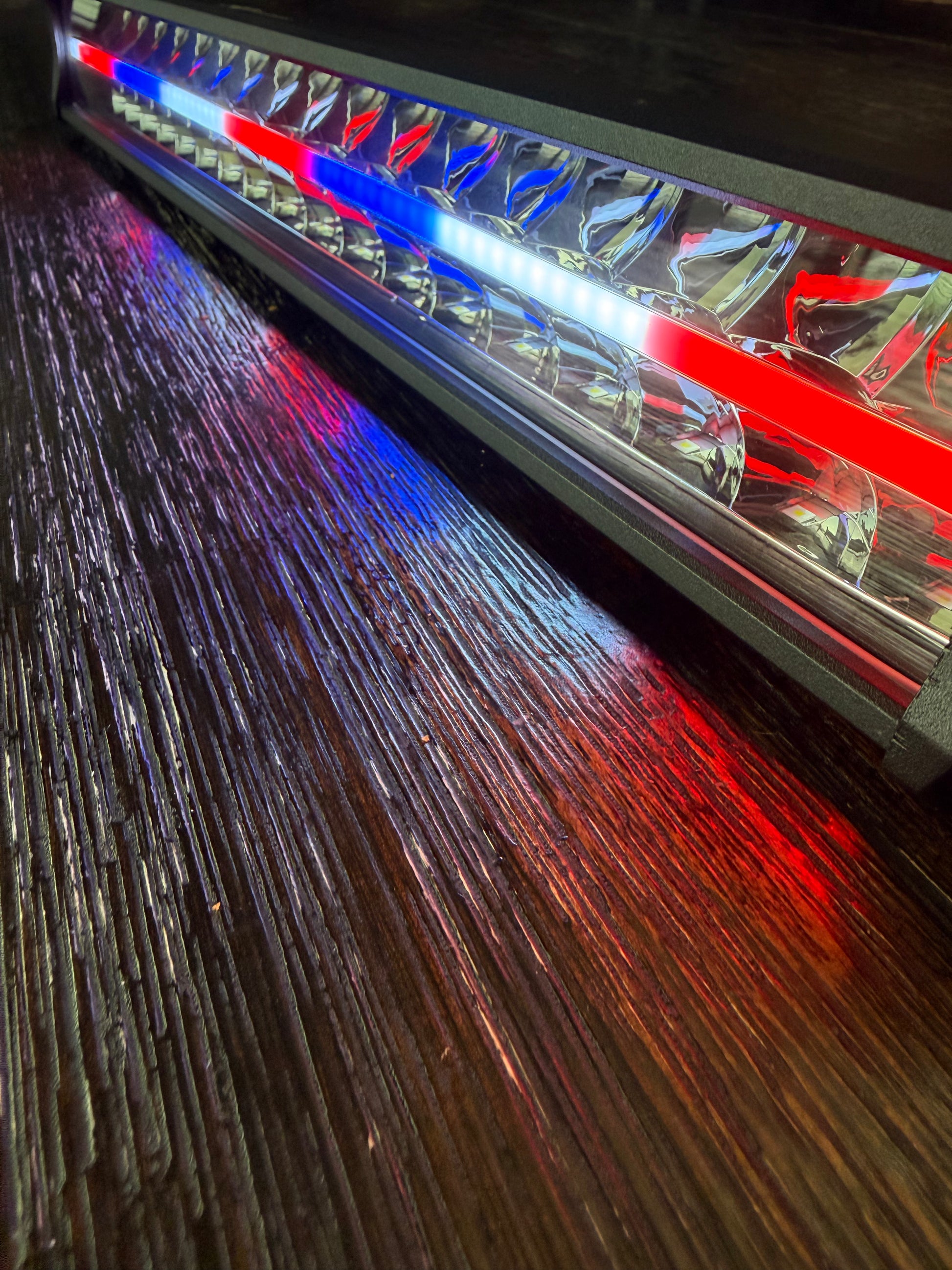

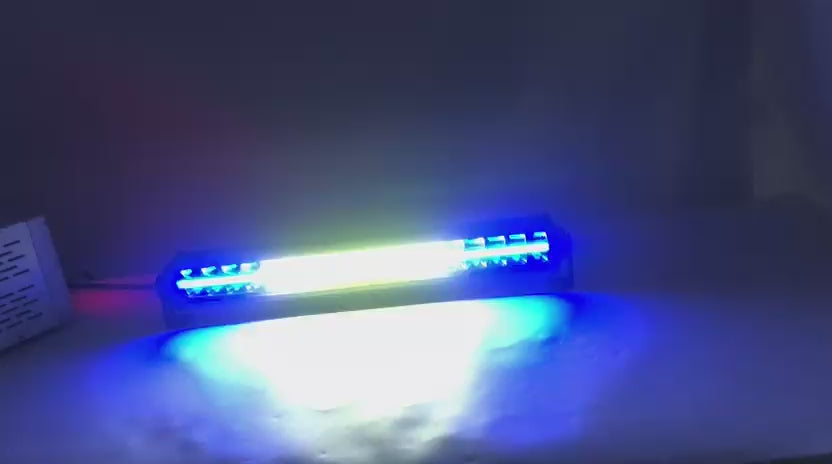

• Beam: Driving light plus RGBIC position light

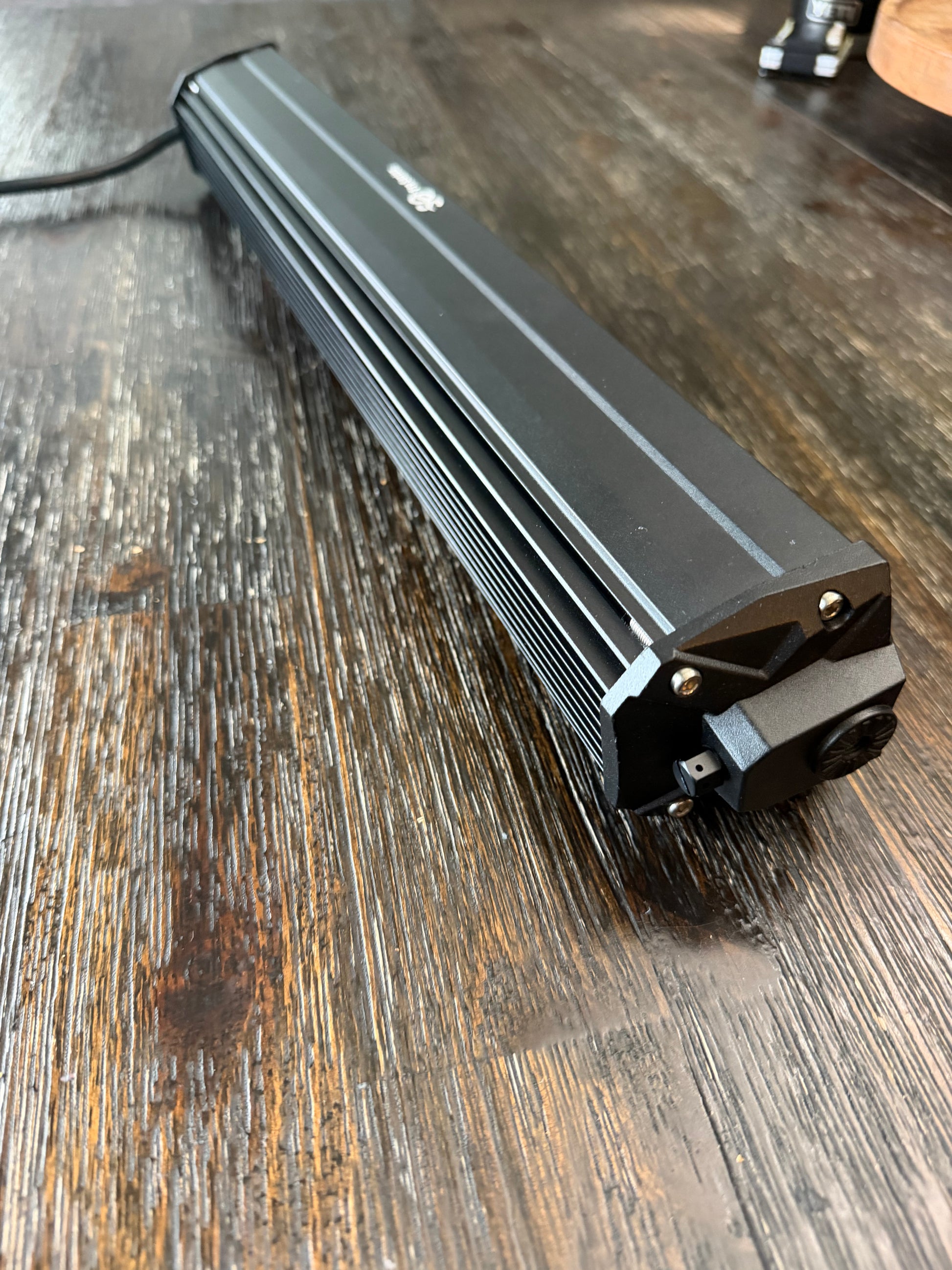

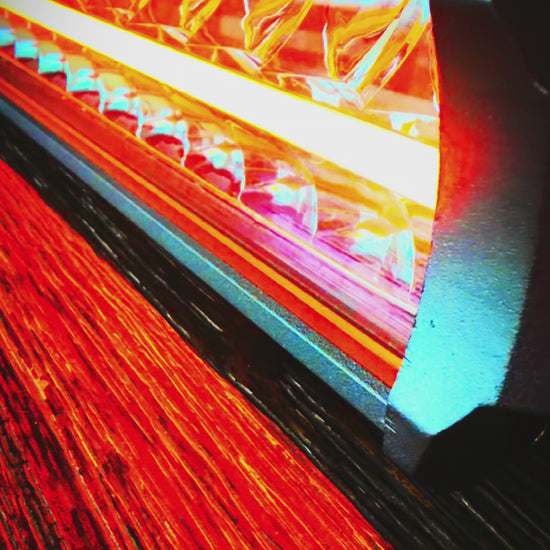

• Housing: Durable aluminum
• Brackets: Stainless steel
• Lens: PC
• Body thickness: 63mm
• App: LotusLamp X (RGBIC color control)
• Warranty: 2 years

• The app will not connect: confirm Bluetooth is on, power the light off and back on, then reopen LotusLamp X and connect again.
• Effects look broken up or mapped wrong: reopen Settings in the app, set the pixel point again, and Confirm.
• The white light works but there is no color: the color circuit has its own power lead. Check that lead and its switch leg first.

• The white light is dark but color works: check the red wire's fuse and switch leg.
• The color strip is dark but white works: check the yellow wire's fuse and source.
• Both sides are dark: check the black ground first, then both fuses.
