Shoreline Offroad Pro Series LED 4” RGB Fog lights

What's in the Box

• Pro Series LED 4 inch RGB Fog Lights, sold as a pair
• Fog light connector plugs on each light

Tools You Will Need

• Socket and wrench set for the fog light mounting hardware
• Electrical tape and zip ties for routing

Rubicon Bumper Note: If you have a Rubicon with an upgraded OEM bumper, you may need an extra bracket to attach to the fog brackets. Check your bumper against the factory fog mounts before you start.

Read This First

• Disconnect the battery before any wiring.
• If your rig runs an auxiliary switch panel, disconnect the panel at the switched fuse so every circuit stays dead while you work.
• Fitment check: these fog lights fit Jeep Wrangler JK 2007 to 2018, Wrangler JL 2018 to present, and Gladiator JT 2020 to present, ONLY. They do not fit trucks, Broncos, or UTVs. Headlights and these fog lights are the Jeep-specific exceptions in the Shoreline line.
• Work one side at a time, so the other fog light stays in place as your reference for the mount and hardware.
• The fog beam runs on your factory fog circuit. The RGB daytime running light runs through the Happy Lighting app.

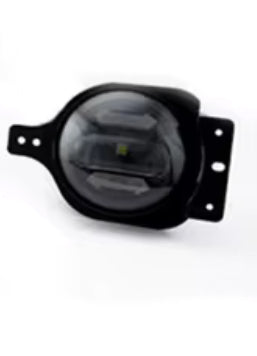

These lights seat in the factory fog light position on JK, JL, and JT Jeeps. Remove the factory fog light on the first side, seat the new light in the mount, and refit the hardware. Rubicon owners with an upgraded OEM bumper: confirm the extra bracket situation from the box card before forcing a mount.

1. Remove the factory fog light on the first side and unplug its connector.
2. Seat the new fog light in the factory mount and refit the hardware.

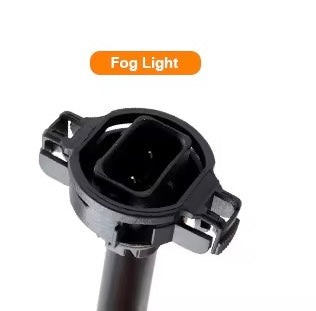

3. Connect the fog light plug. The connector is labeled Fog Light on the plug body.
4. Route the lead clear of sharp edges and moving parts, and repeat on the other side.
5. Reconnect the battery and test: fog beam on the factory fog switch, then the RGB daytime running light from the app card.

What It Controls

The Happy Lighting app runs the color side of your fog lights: colors from the wheel, brightness, preset and standard colors, fixed style modes, music rhythm mode, the phone microphone tape mode, timing that turns the lights on and off on schedule, and a shake mode that changes color when you shake the phone. The beams themselves always run on your factory switches.

Pairing the App

1. Download the Happy Lighting app. A QR code for it is printed in the manual in the box.
2. Turn Bluetooth on in your phone's settings.
3. Open Happy Lighting. It finds the light's BLE signal and connects on its own.
4. Pick a color from the wheel to confirm the light answers the app.

Settings That Matter

• The main screen's color wheel, brightness slider, and preset colors cover day to day control.
• Timing sets automatic on and off times.
• If colors ever come out in the wrong order, the RGB output sequence in the app's settings is the fix.

Specs

• Power: 15W per light, plus 3W angel eye
• Output: 2,000 lumens
• Color temperature: 6000K bright white
• Voltage: DC 10.5 to 16V
• Lifespan: 30,000 hours
• Sealing: IP67 water-resistant and dustproof
• Lens and base: Acrylic lens, PC cover, die-cast aluminum base
• App: Happy Lighting (RGB daytime running light control)
• Warranty: 2 years

• The app will not connect: confirm Bluetooth is on in your phone's settings, close and reopen Happy Lighting, and let it find the BLE light on its own.
• The color side is dark but the beam works: the beam and the color circuit are separate. Check the light's power and ground first, then re-pair the app.
• Colors come out in the wrong order: correct the RGB output sequence in the app's settings.

• The fog beam is out on one side: check that side's fog plug first, then the factory fog fuse.
• The RGB daytime running light is out but the beam works: re-pair the app per the app card, then check the light's power and ground.
• The light will not seat on a Rubicon with an upgraded OEM bumper: the extra bracket noted on the product page is the fix. Do not force the factory mount.
